Compasses / Azimuths / Binnacles / Clinometers

Compasses

161A, Cooke

Supplied with Humber Binnacles.
6 ½ 165mm DIA card 0-360 degrees with ¼ pts
Engraved verge suspended in Gimbal using phosphor bronze bearings

Diameter of Gimbal 12” 304mm
Diameter of bowl 9 5/8” 245mm

Beverley, Cooke

5” 127mm DIA card 0-360 degrees with ¼ pts

Diameter of Gimbal 9” 228mm
Diameter of bowl 7 1/8” 180mm
Supplied with suspension brackets

Small Boat Compass

4” 102mm DIA card 0-360 degrees with ¼ pts

Diameter of Gimbal 6 3/8 “ 162mm
Diameter of bowl 5 ¼ 132mm

A full range of other compasses from other manufacturers, suitable for the commercial shipping and yachting market is available for supply.

Binnacles

Humber MK III Reflector Binnacle

Refer to leaflet and installation instructions at the bottom of this page.

The York Reflector Binnacle

Refer to leaflet and installation instructions at the bottom of this page.

The Trent Binnacle

Type 161A compass in brass rim with securing flange, vertical force corrector and electric light fitting.
G.R.P Dome Helmet
Overall height 12 ½ ” 320mm
Diameter 15 ¼ “ 385mm
Overall weight 16.6kgs

Extras: Reflecting mirror

Azimuths

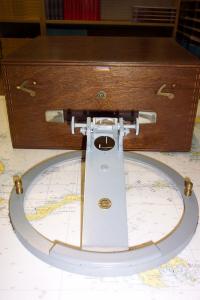

161A Cooke Azimuth

Standard Merchant Navy brass ring utilising Phosphor bronze spring stop to ensure close fit and to prevent seizing. 2 different density shades and shadow pin complete in storage case.

Short Based Azimuth

Sight vane type for easy use. Will fit most types of compass. Comes complete with brass centre boss to secure to top glass of the compass and a plastic case (9” 230mm) x (8” 200mm) x (2” 50mm)
